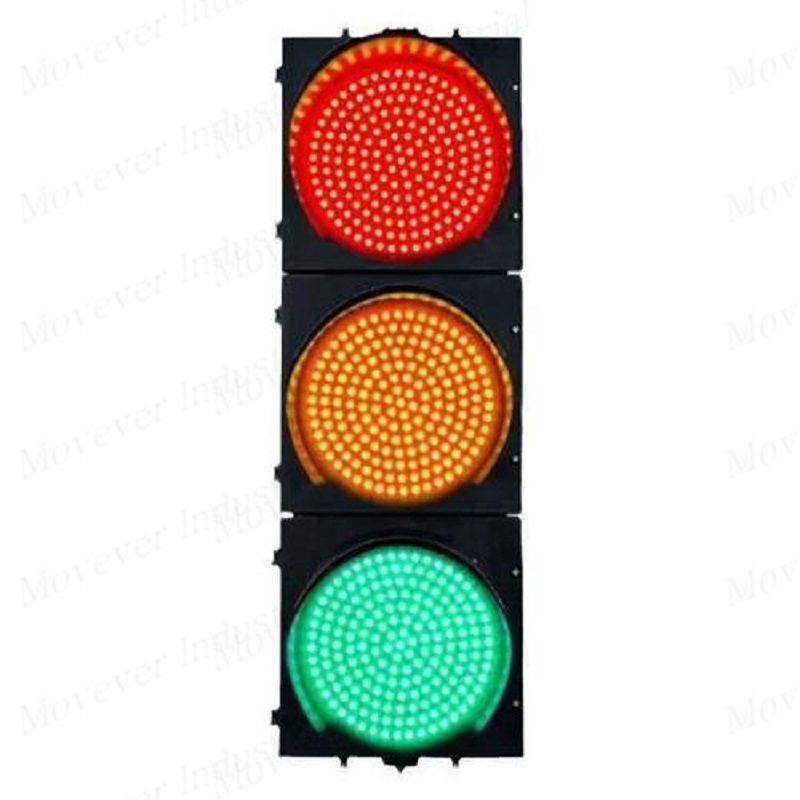

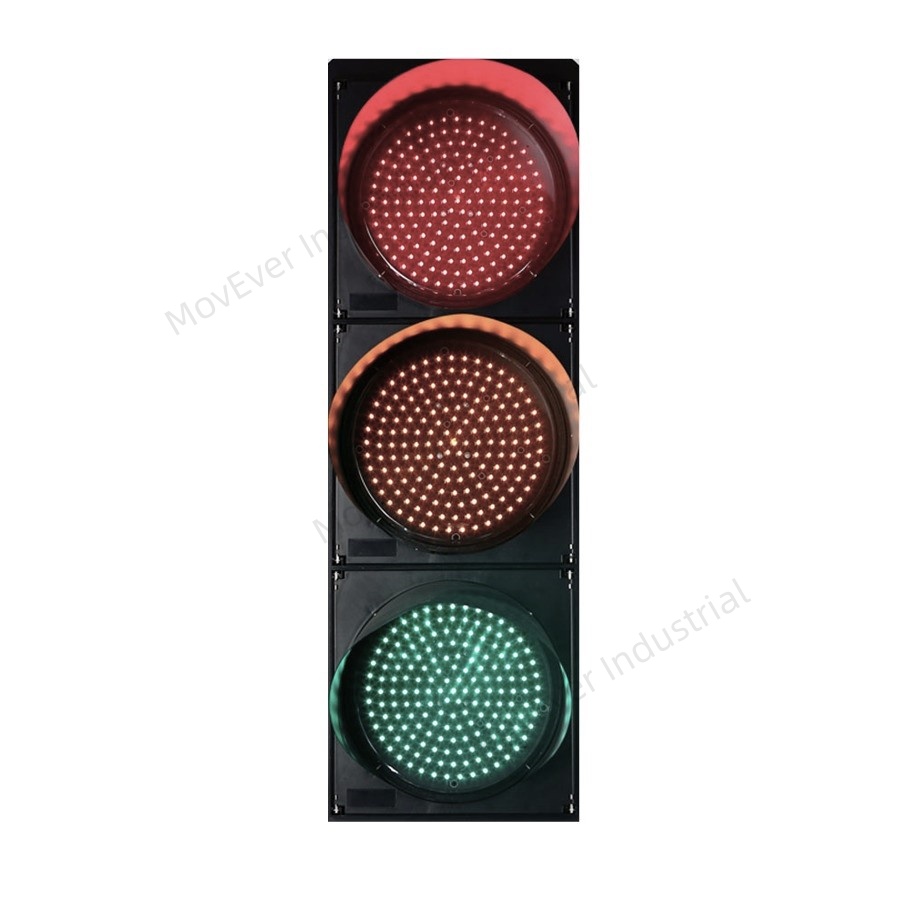

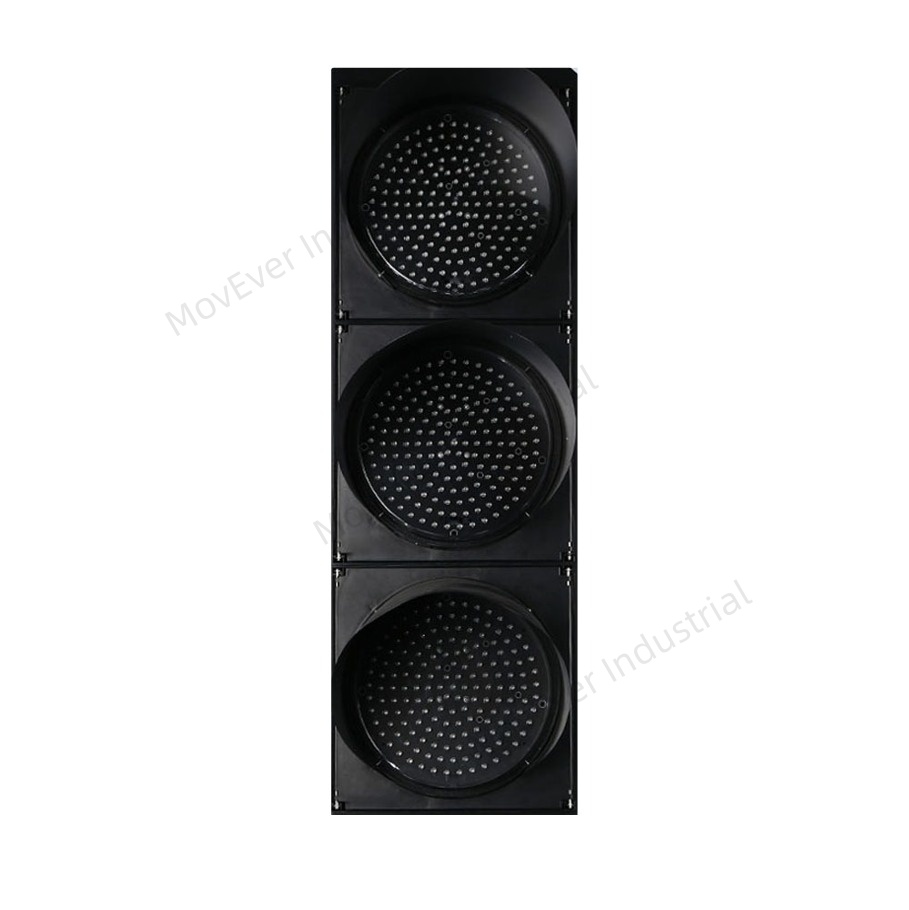

JY-XHD-302/303/304RYG
Technical Data
| Product Specification | ||

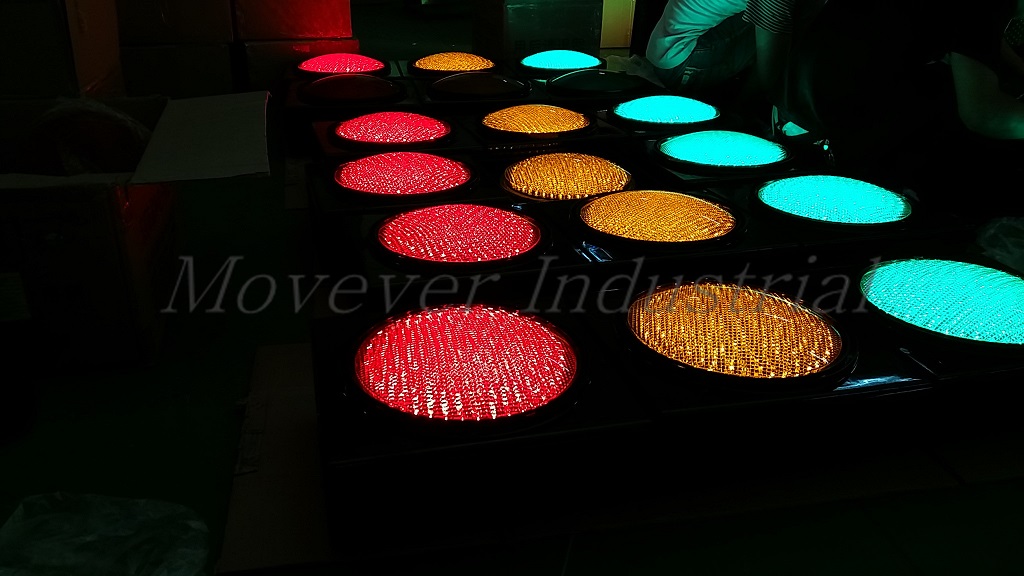

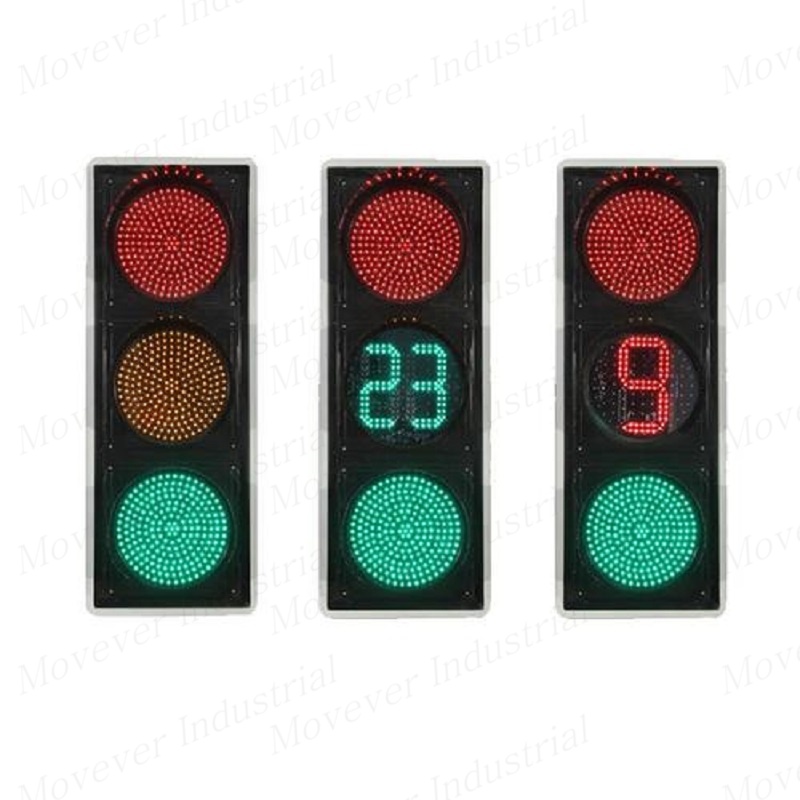

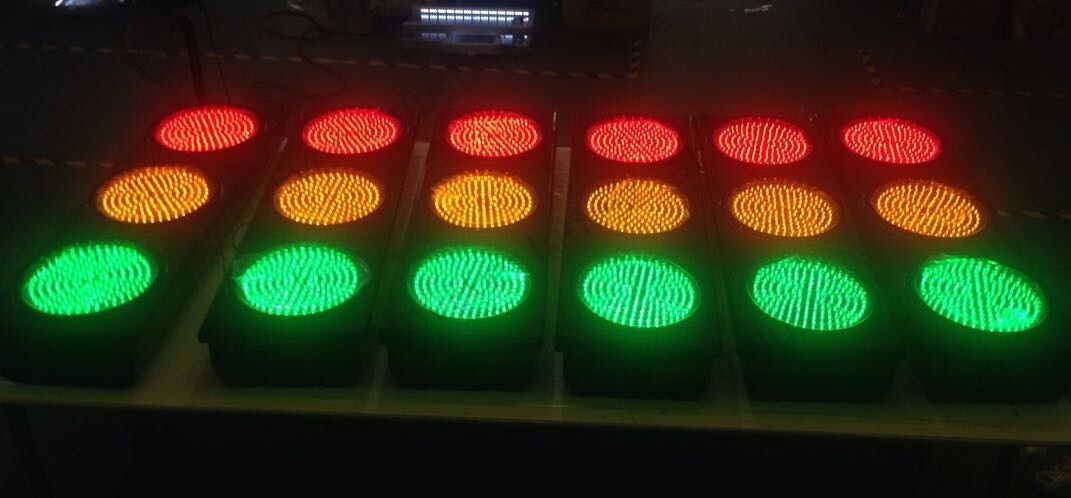

| Description | LED Roadway Signal Light (Driveway) | |
| Model Number | JY-XHDDP200/300-X（JY-XHD-202/303/304） | |
| Emitting Area | Diameter 200/300/400 mm | |
| Voltage | AC85-265V 50/60Hz | |
| Colour | Yellow / Red / Green | |
| Red | Light intensity | ≥6000mcd |
| Wavelength | 630±5nm | |
| Power Consumption | ≦12W | |
| Beam angle: | 30degree | |
| Yellow | Light intensity | ≥4500mcd |
| Wavelength | 590±5nm | |
| Power Consumption | ≦12W | |
| Beam angle: | 30degree | |
| Green | Light intensity | ≥10000mcd |
| Wavelength | 505±5nm | |
| Power consumption | ≦12W | |
| Beam angle | 30degree | |
| Control Mode | PLC / 485 / customized | |
| Visible Distance | >500 m | |
| Housing Material | PC plastic anti-UV material | |
| LED Average Life Time | ≥100000 H | |
| Working Temperature | -20-60 ℃ | |
| Ingress Protection | IP65 |
