Double Side Road Marker / Road Safety / Solar Products

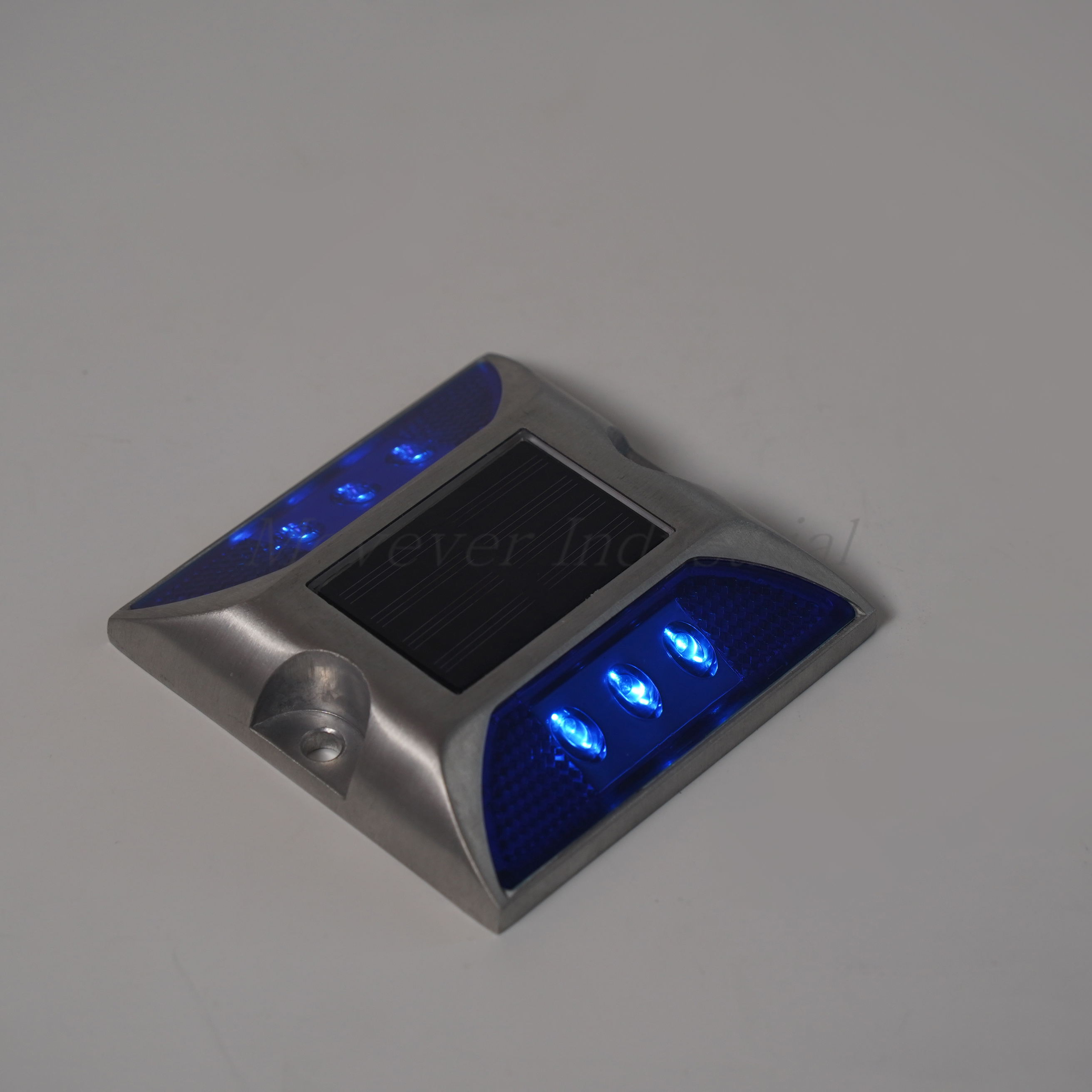

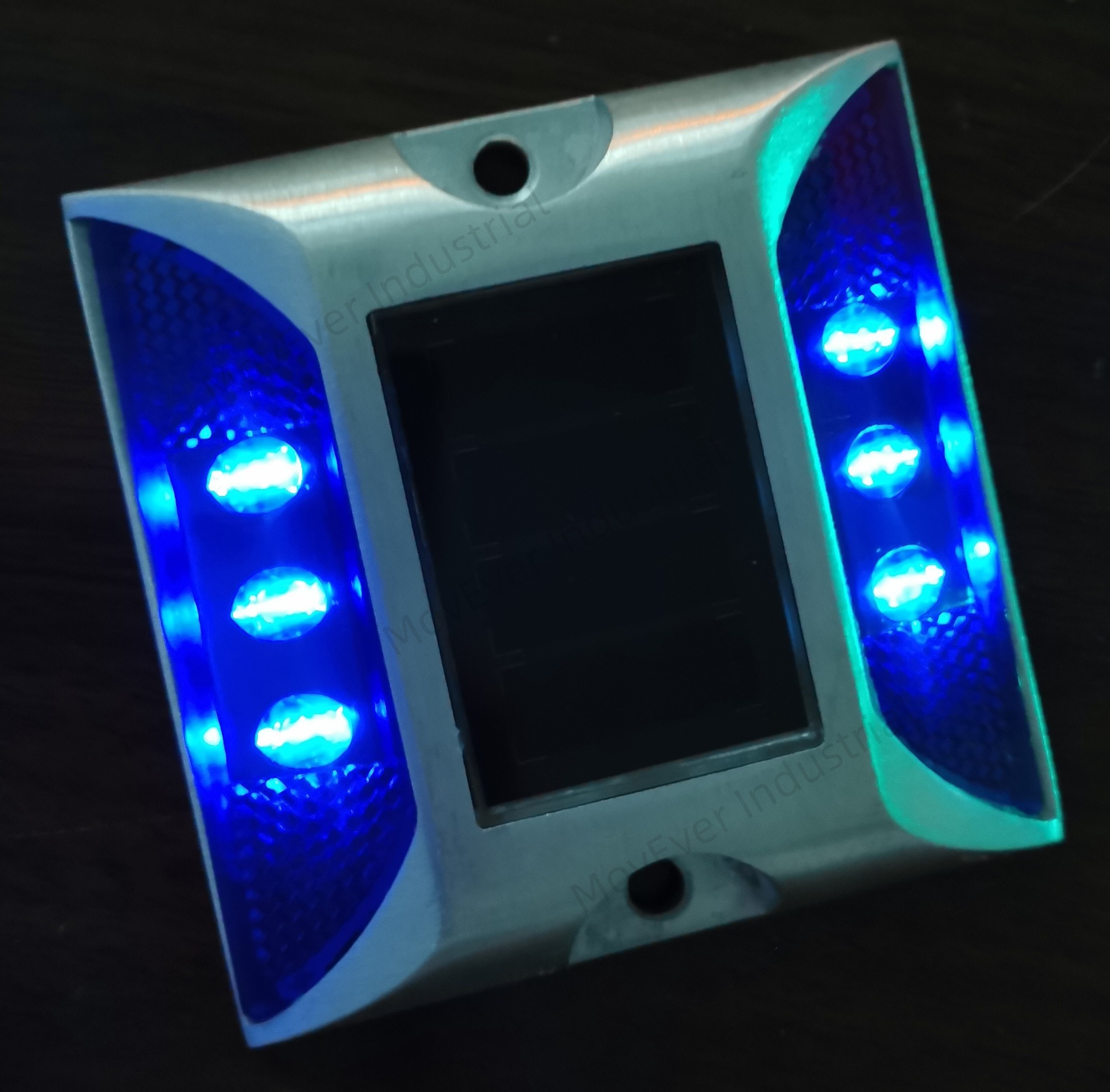

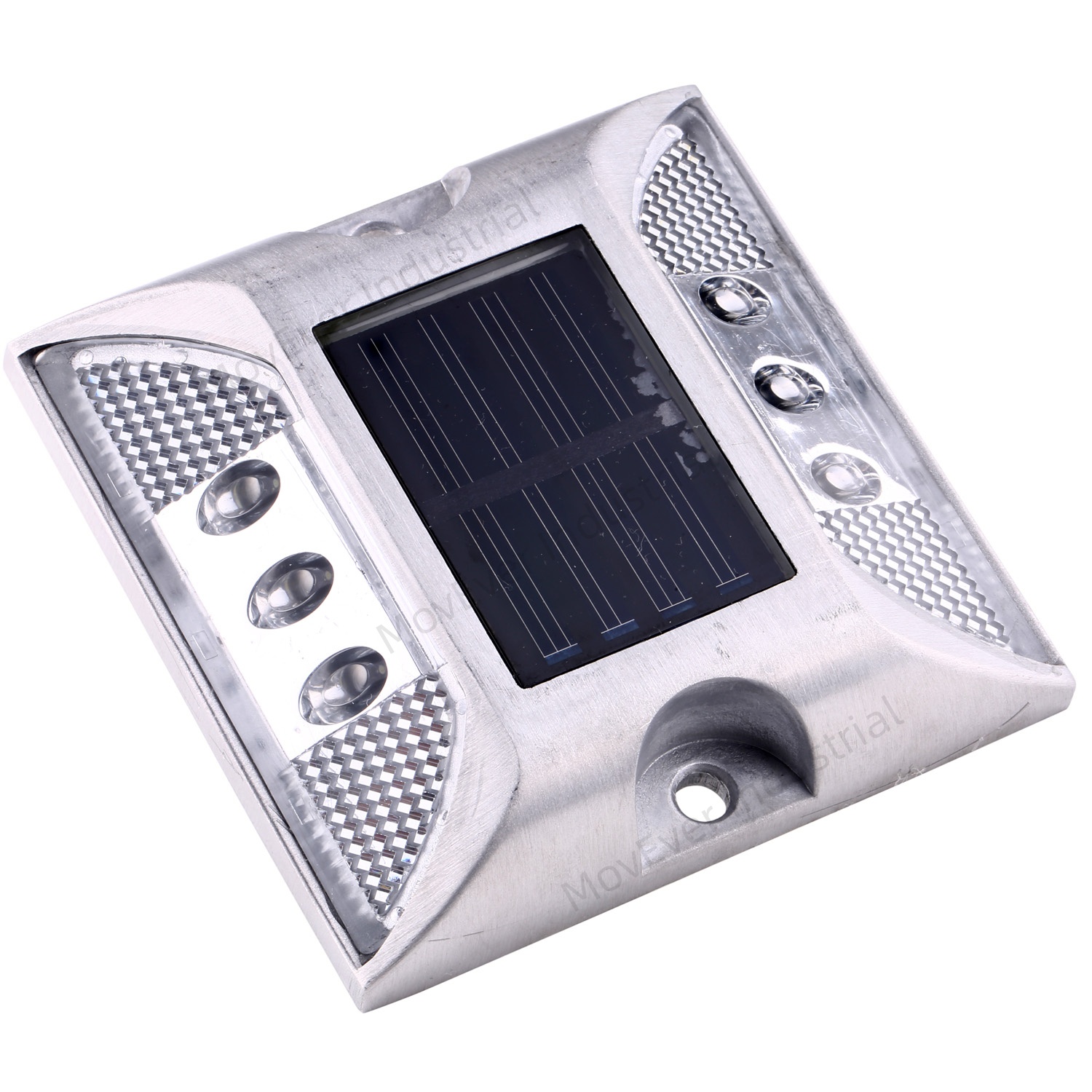

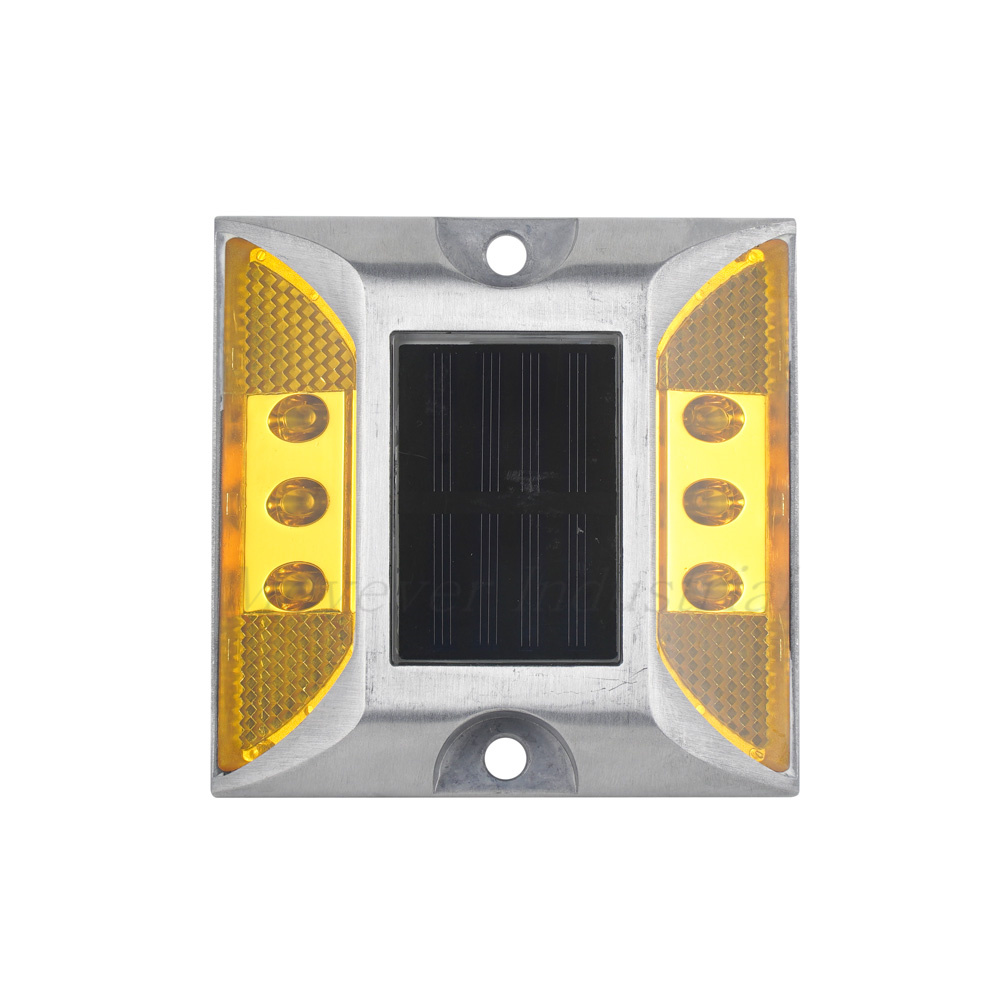

Double side, aluminum alloy, solar road stud. 3 LED for each side optional.Flashing or steady light working mode optional.
Inquiry
  • Content details

JY-DDJF1-22 -X



Product SpecificationRemark

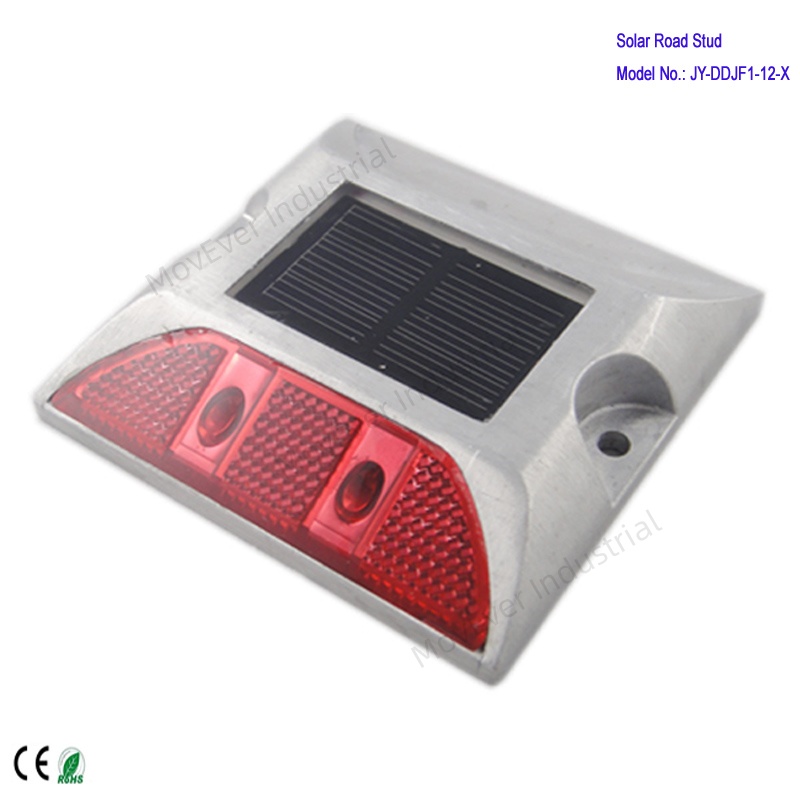

DescriptionSolar Road Stud (square shape)2 size
Model NumberJY-DDJF1-13 / 23-X  (New: JY-DD-JFN-13 / 23-X)
Product Dimension104*104*23 mm   (New mode size: 114 x 109 x 23 mm)
PowerMaterial Mono-crystalline silicon solar cell,100mA
Voltage2V
Output max consumption0.2W
BatteryHi-Temp NI-MH battery,1.2V,600 mAh
LED Quantity2 / 3 pcs per side

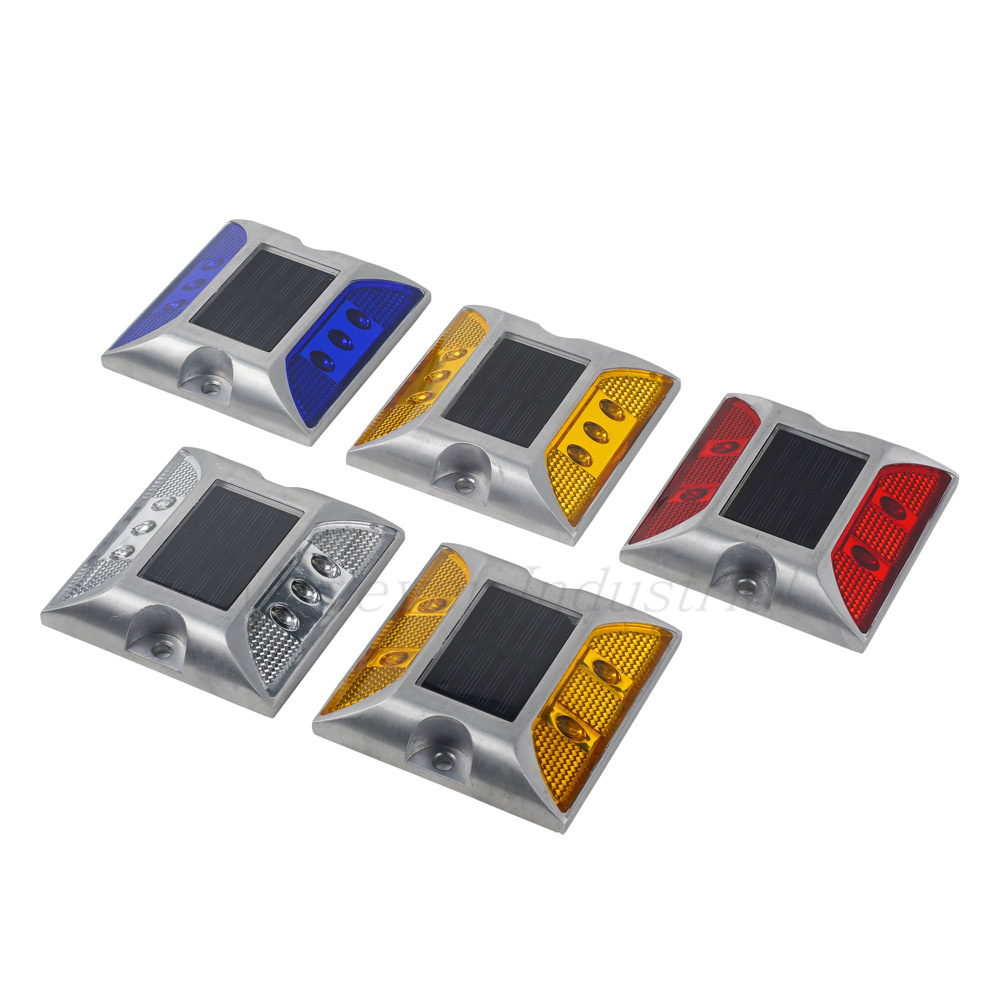

Color Red/white/yellow/green/blue
Frequency2Hz±20% flash or steady light
Visible Distance>800 m
Working Time100h after fully charged (flash)
Light Intensity6000~10000 mcd
Starting Light Intensity<500 Lux
Main MaterialAluminum alloy
Lifespan3 Year
Working Temperature-20-60 ℃
Resist CompressionUp to 15 ton (statics)
Ingress ProtectionIP67
Net Weight320 g

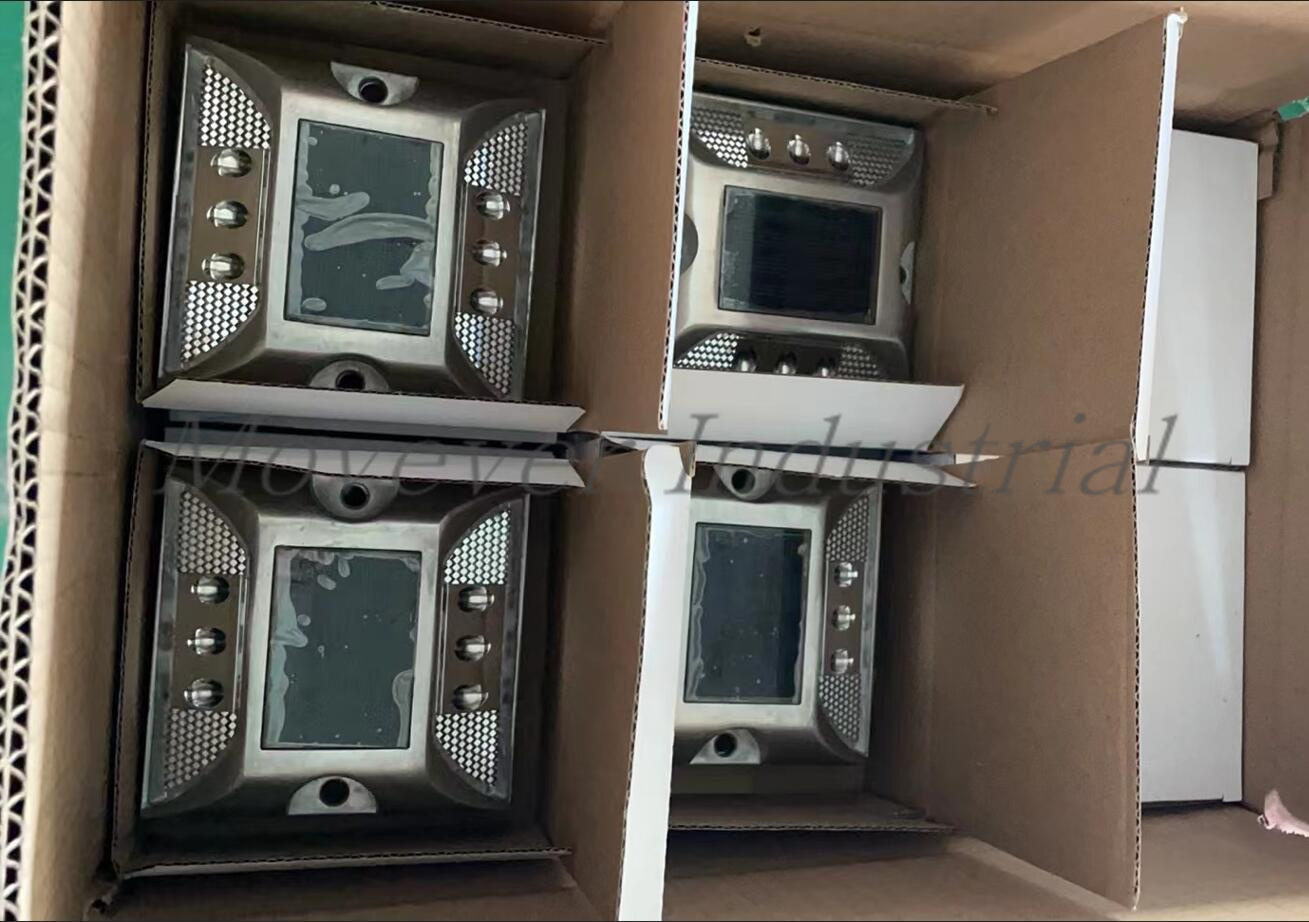

Packing60 pcs/carton / 39 x 29 x 27 cm



Double Side Road Marker / Road Safety / Solar Products(图1)


Double Side Road Marker / Road Safety / Solar Products(图2)
